Lemitec-Decanter MD 100

A modern decanter centrifuge designed for 2-phase (solid-liquid) separation operations and for product streams of up to 300 L/h.

The Lemitec MD 100 has been designed for use in pilot plants and for industrial applications.

Throughput
Decanter throughput10 - 300 L/h
Inlet tube diameter15 mm
Clarified liquid dischargeunder pressure
Bowl
Internal diameter100 mm
Slenderness ratio (L/D)3.7
Maximum acceleration4,500 g
Maximum speed9,000 rpm
Differential speed1 - 200 rpm
Motor rating2 x 8.0 kW
Material used for components in contact with the product1.4404 / 316 L
Dimensions and weight
Decanter centrifuge1,950 x 750 x 1350 mm
400 kg
Control unitIntegrated

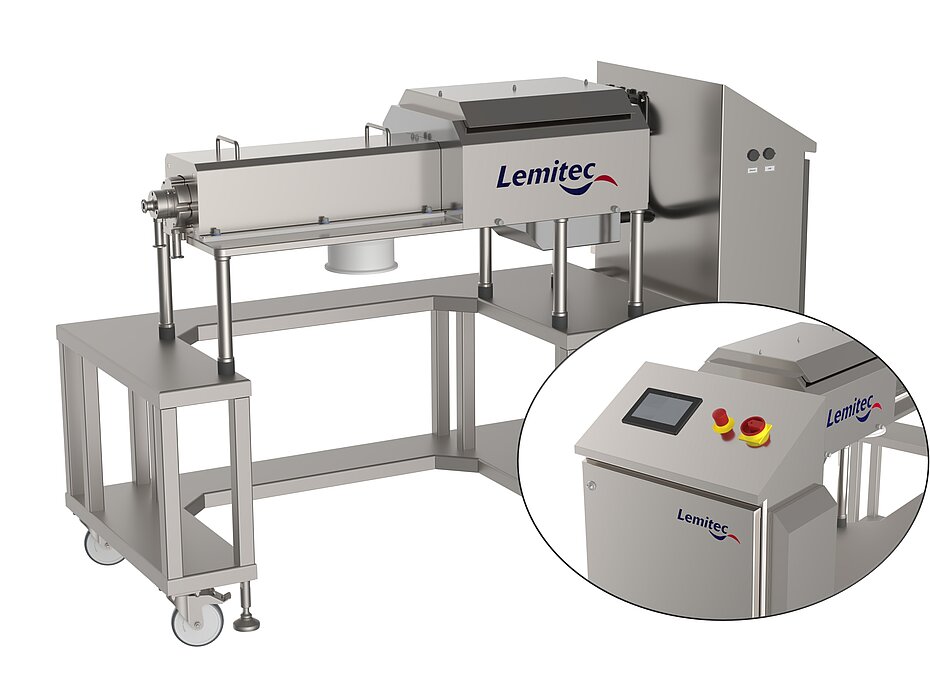

Sample construction

The accessories shown are not in scope of a standard delivery.
